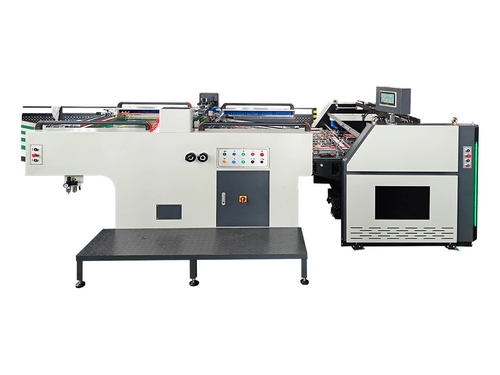

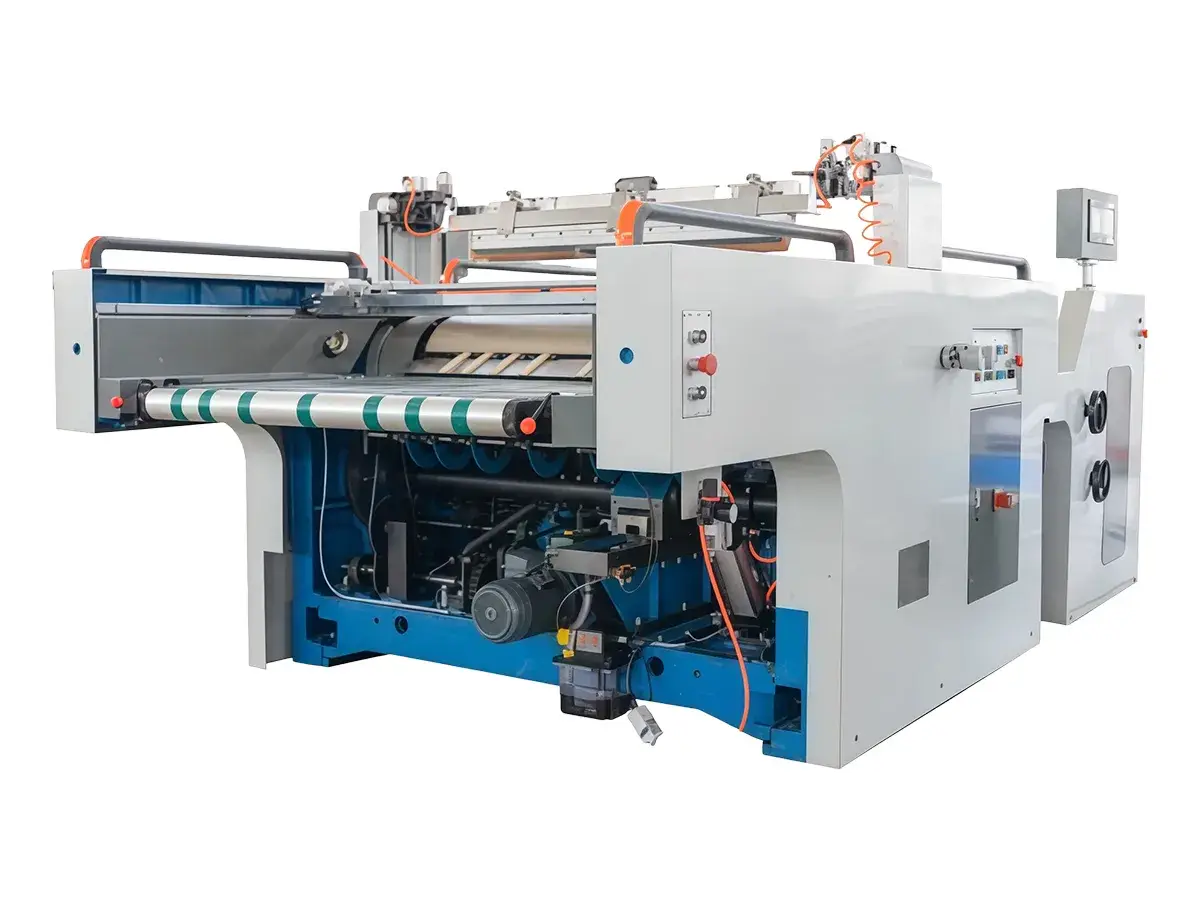

Automatic Swing Cylinder Screen Printing Machine
The automatic swing cylinder screen printing machine is built for printers that need accurate ink transfer, stable registration, and flexible UV finishing on paper-based packaging and specialty printed products. By coordinating the reciprocating movement of the cylinder with controlled squeegee pressure, the machine transfers ink smoothly through the screen mesh onto the substrate.
During printing, the screen plate and substrate maintain a moving line contact, giving the printing machine strong control over print accuracy and image clarity. This structure is suitable for high-precision screen printing applications where stable ink coverage, clean details, and consistent finishing quality are required.
In addition to spot UV varnishing, the automatic swing cylinder screen printing machine can also handle single-color and multi-color UV ink printing, making it a practical solution for packaging printers that need richer surface effects, stronger visual impact, and more flexible decorative printing options.

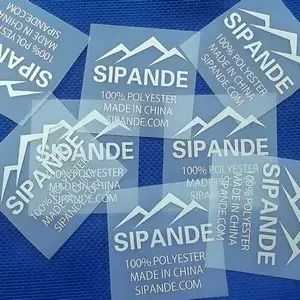

Paper-Based Packaging and Labels
The Automatic Swing Cylinder Screen Printing Machine is suitable for printing on various paper-based substrates, including gift boxes, premium cartons such as mooncake boxes and cigarette packs, and self-adhesive labels. It supports decorative printing requirements where packaging products need rich colors, strong ink coverage, and special visual effects on complex or uneven surfaces.

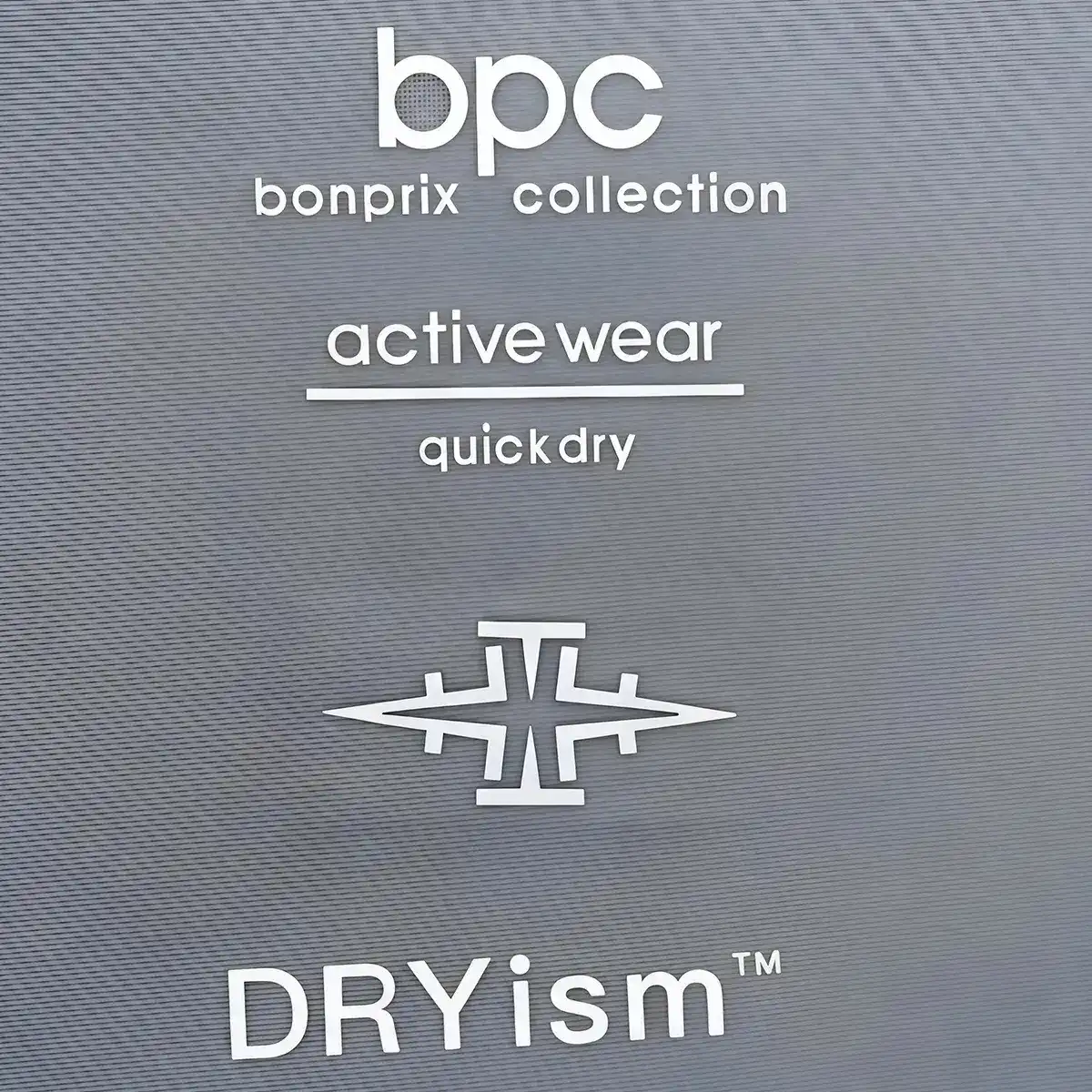

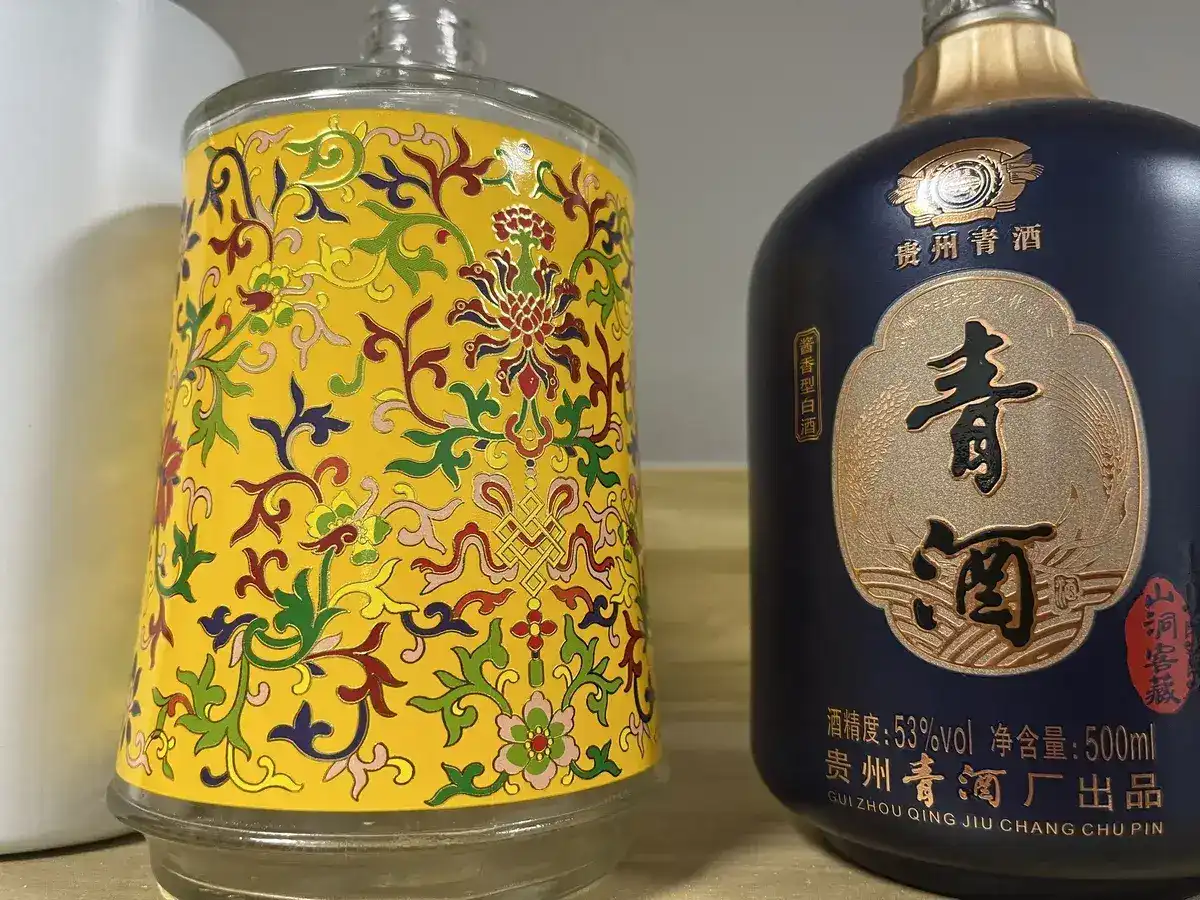

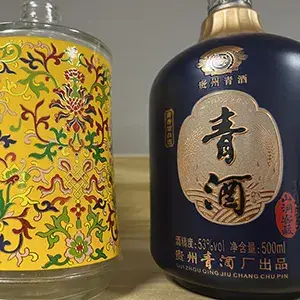

Transfer Printing Applications
The Automatic Swing Cylinder Screen Printing Machine can also print patterns on transfer paper first, which are then transferred by heat transfer or waterslide decal processes onto ceramic, glass, plastic, textiles, and other finished products. This makes the machine suitable for manufacturers producing decorative graphics for packaging, consumer goods, and industrial products.
| Parameter | |
|
|
| Max. Sheet Size (mm) | 780×540 | 1020×740 | 1700×1350 |
| Min. Sheet Size (mm) | 350×270 | 500×350 | 750×500 |
| Max. Printing Area (mm) | 780×520 | 1020×720 | 1650×1200 |
| Substrate Weight (gsm) | 90-350 | 120-350 | 160-320 |
| Printing Speed (pcs/h) | 500-3300 | 500-3000 | 600-2000 |
| Screen Frame Size (mm) | 940×940 | 1280×1140 | 1920×1630 |
| Total Power (kW) | 7.8 | 8.2 | 18 |
| Total Weight (kg) | 3800 | 4500 | 5800 |
| Dimensions (L×W×H) (mm) | 3100×2020×1270 | 3600×2350×1320 | 7250×2650×1700 |
- Stable Drive and Centralized Control: The Automatic Swing Cylinder Screen Printing Machine uses a variable-frequency brake motor drive and Mitsubishi PLC centralized control. The touchscreen displays all key operating data, making printing operation clearer, easier, and more efficient.
- Automatic Optical Fiber Positioning Detection: Optical fiber detection monitors sheet positioning throughout the process. When there is no paper or a paper jam occurs, the system automatically lifts or lowers the relevant mechanism, reducing paper waste and protecting printed materials.
- Durable 316L Stainless Steel Printing Cylinder: The printing cylinder is made from 316L stainless steel for precision, durability, and long-term stable operation. The flexible gripper design allows quick adjustment for different paper thicknesses, making production changeovers more convenient.
- 90° Turnable Delivery Board for Easier Cleaning: The delivery board can be turned 90° to make screen cleaning more convenient. The screen frame position can be adjusted up and down, forward and backward, and left and right, giving operators more flexibility during setup and registration adjustment.
- Centralized Lubrication System: Main transmission components are automatically lubricated, which helps maintain operating accuracy, reduce wear, and extend the service life of the Automatic Swing Cylinder Screen Printing Machine.
-

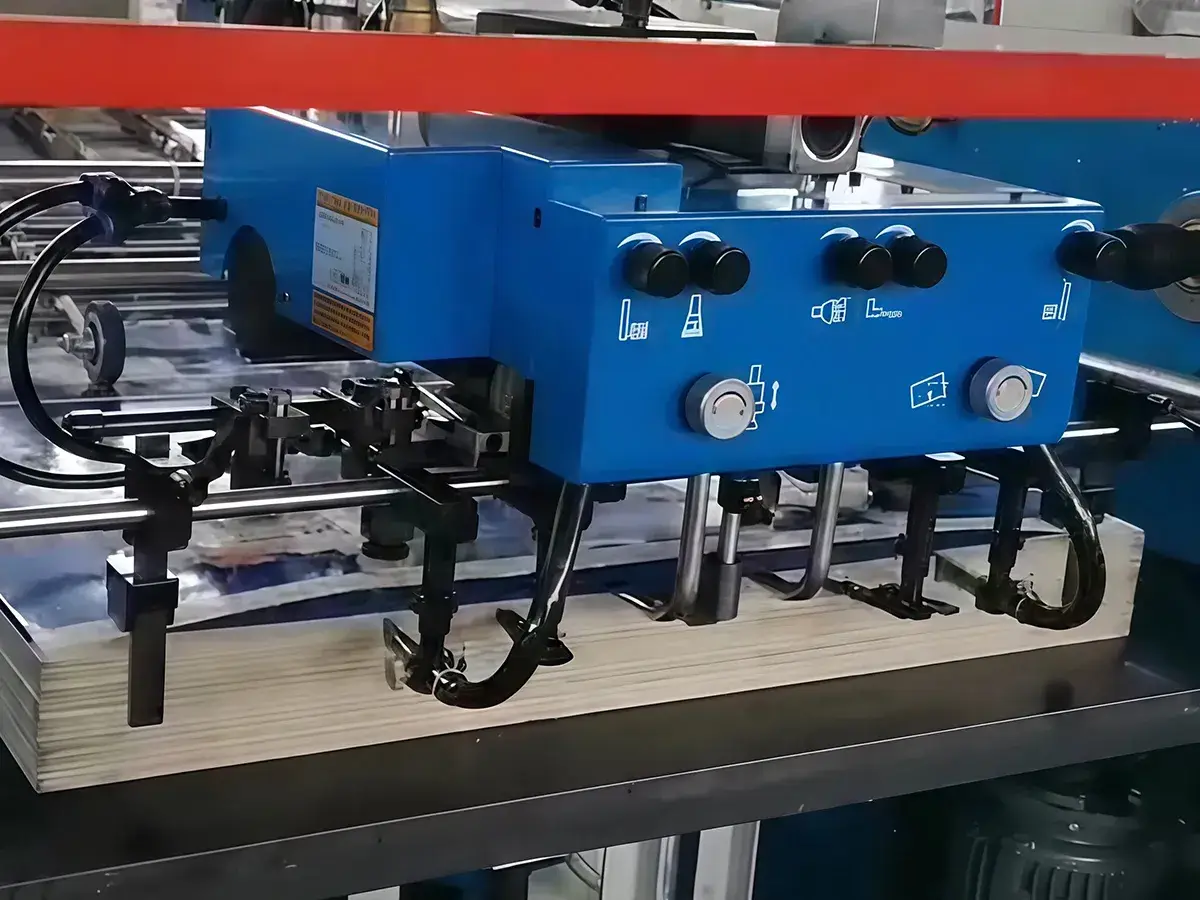

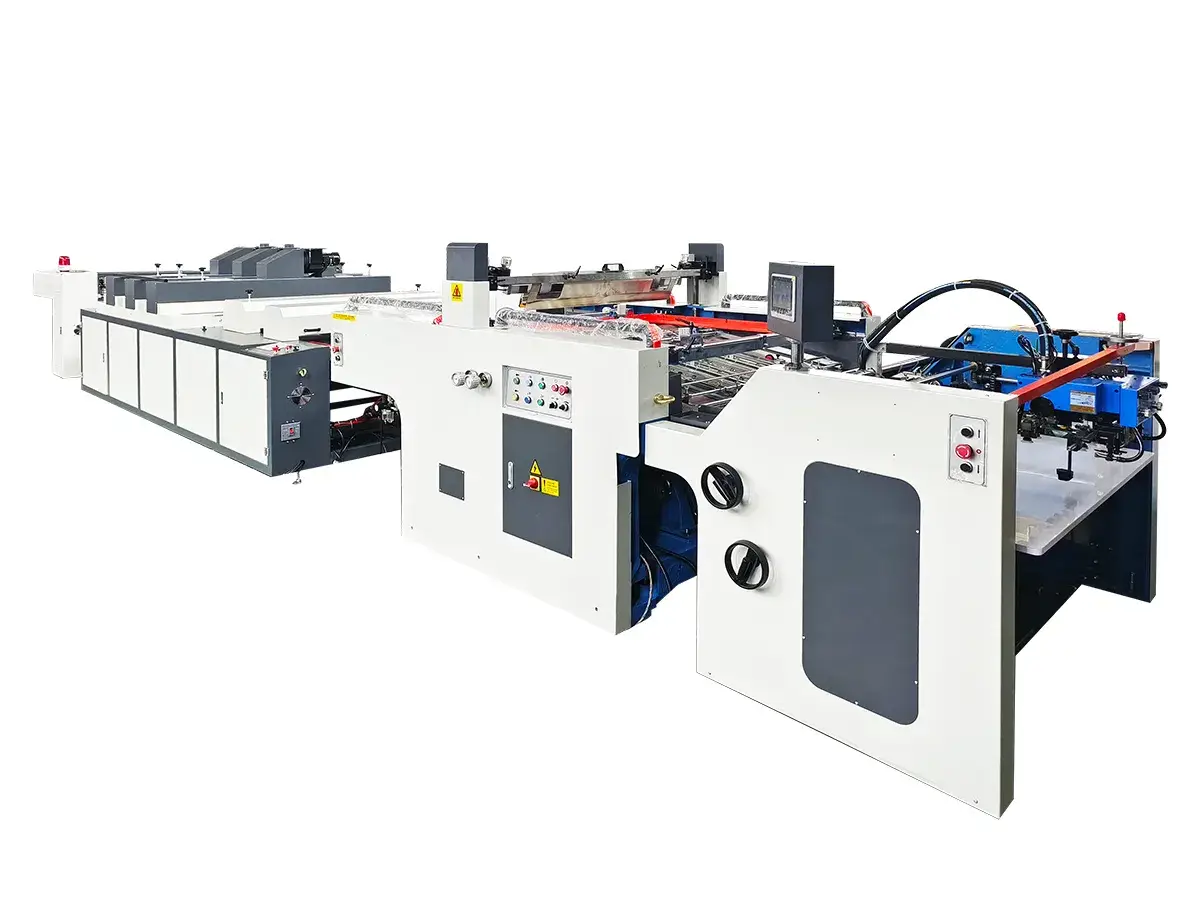

Offset-Style Rear Sheet Pickup SystemThe automatic swing cylinder screen printing machine uses an original offset-style rear sheet pickup system to keep different substrates feeding smoothly and steadily. Depending on the material type and production requirement, operators can easily switch between overlapping feeding and single-sheet feeding, giving the machine better flexibility for varied printing applications.
-
Newly Designed Push and Pull Lay SystemThe newly designed push and pull lay system supports stable sheet positioning for both thin and thick paper. This structure makes material changeovers easier and gives the Automatic Swing Cylinder Screen Printing Machine better feeding accuracy across different substrate types.
-
Stainless Steel CylinderThe stainless steel print cylinder is intricate and durable. The cylinder fingers are designed to be flexible. Cylinder holes are linked with vacuum and air blast components, ensuring fast adjustments for different paper thicknesses.
-
Double-Sheet Detector (with options)The double-sheet detector identifies overlapping sheets before they enter the printing section, reducing feeding errors, paper waste, and potential production interruptions.
