Cold Foil Transfer Machine, series GUV-Y

GUV-Y Series

Cold Foil Transfer Machine, Holographic Cold Transfer Machine

The GUV-Y series cold foil transfer machine is built for packaging printers that need premium metallic decoration, holographic anti-counterfeiting effects, and differentiated surface finishing in one integrated process. By combining holographic laser transfer with cold foil technology, the GUV-Y Series creates laser texture effects on paper, film, and other printable substrates while transferring metallic foil or holographic film without high-temperature stamping.

Using UV adhesive and pressure, this cold foil transfer machine transfers foil or laser film onto the substrate surface to create eye-catching decorative and security effects. The machine can be connected with automatic screen printing machines, printing presses, gravure coating machines, spot UV coating machines, and other equipment to produce customized holographic transfer, C-square effects, and cold foil finishes for high-value printed products.

Watch Video

Request a Quote PDF Download

Applications

This cold foil transfer machine is suitable for surface embellishment on cigarette boxes, wine boxes, cosmetic boxes, pharmaceutical boxes, gift boxes, toys, books, magazines, and printed products made from paper or plastic sheets.

For printing companies that need stronger packaging appeal, more diverse decoration options, and higher-value finishing effects, the GUV-Y Series supports metallic decoration, holographic texture, and anti-counterfeiting surface treatment in a flexible production workflow.

Specifications

Model	76AS	76CS	76ACS	106AS	106CS	106ACS
Laser Transfer Module	●	○	●	●	○	●
Cold Foiling Module	○	●	●	○	●	●
Cool Air Delivery Module	●	●	●	●	●	●
Max. Working Format (mm)	760×540	760×540	760×540	1060×740	1060×740	1060×740
Min. Working Format (mm)	546×393	546×393	546×393	546×393	546×393	546×393
Max. Printing Area (mm)	750×530	750×530	750×530	1030×730	1030×730	1030×730
Substrate Weight (gsm)	90–450	128–450	90–450	90–450	128–450	90–450
Max. Foil Roll Diameter (mm)	∅500	∅500	∅500	∅500	∅500	∅500
Max. Foil Width (mm)	760	760	760	1060	1060	1060
Film Material Type	BOPP/PET	BOPP/PET	BOPP/PET	BOPP/PET	BOPP/PET	BOPP/PET
Max. Speed (pcs/h)	4000	4000	4000	4000	4000	4000
Exterior Dimensions (m)	6.9×2.7×3.3	6.4×2.7×3.3	8.4×2.7×3.3	6.2×4.1×3.8	6.2×4.1×3.8	8.2×4.1×3.8
Total Weight (Tons)	≈4.6	≈4.3	≈10.4	≈6.3	≈6.0	≈10.4

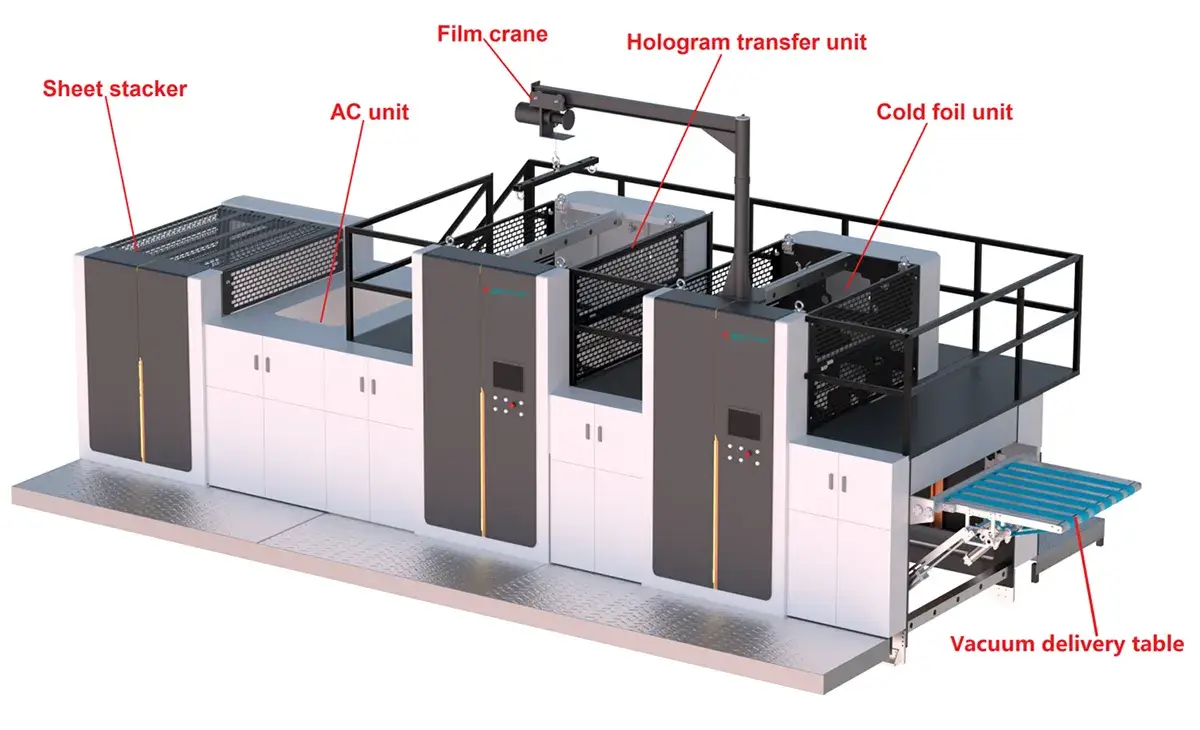

Components

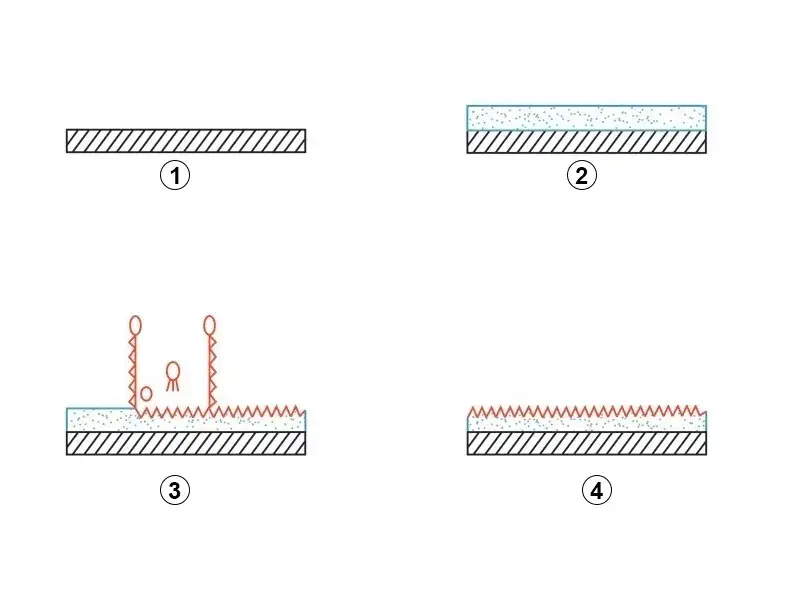

Process Flow

Paper Sheet
The paper sheet enters the finishing process.
UV Varnishing
The screen printing machine applies UV varnish to the required areas and cures the coating.
Embossing Transfer
The cold foil film is pressed and transferred onto the UV ink or varnish layer, creating a metallic, holographic, or textured surface effect.
Finished Product
The finished sheet achieves a premium decorative effect for high-value packaging applications.

Detailed Features of the 106ACWS Model
