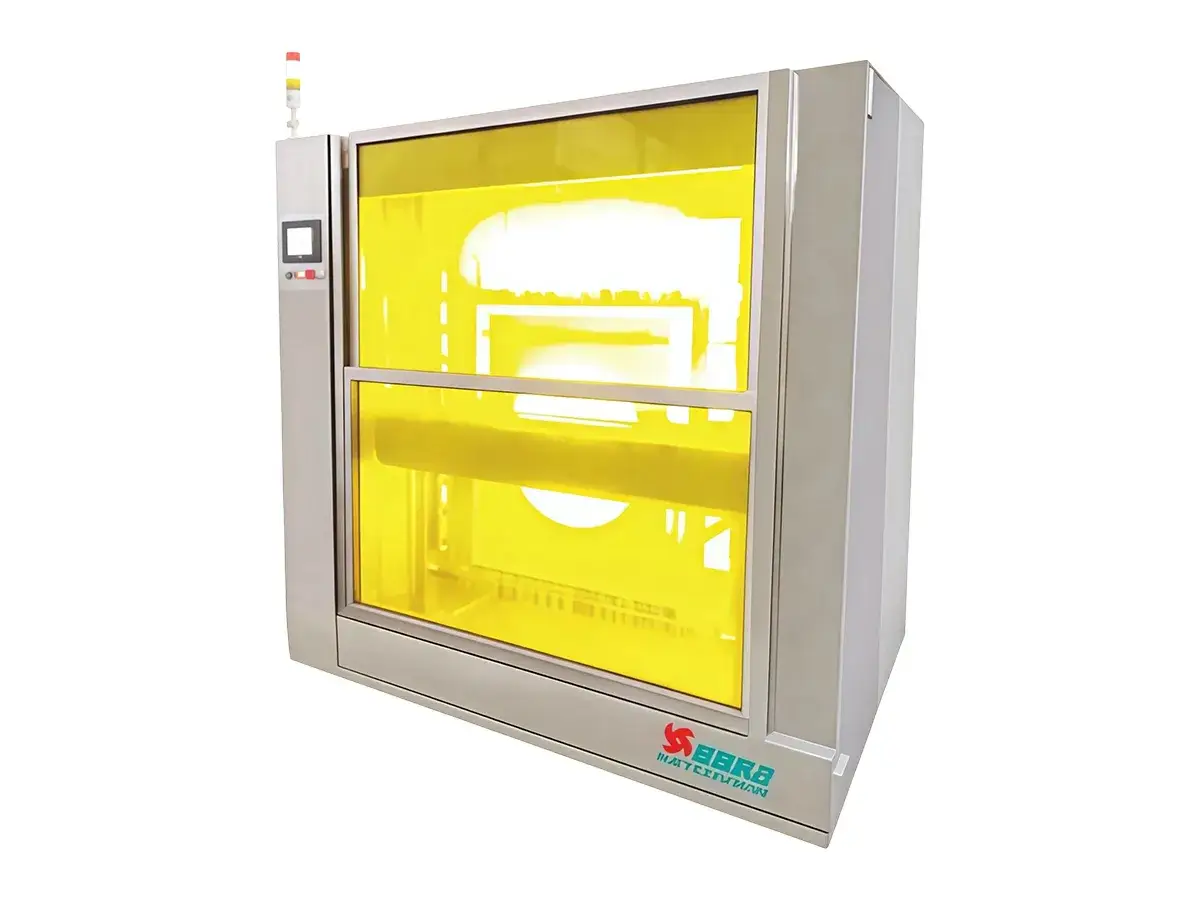

GCF series

Automatic Screen Washing Machine, Washout Booth for Washing and Developing

Clean, damage-free screen developing becomes easier to control with the GCF series automatic screen washing machine. By combining high-pressure spraying, stable screen conveying, and centralized control, the machine delivers even developing, washing, and stripping results while reducing manual handling and process variation in the screen making room.

This automatic screen washing machine is suitable for screen printing workshops that need cleaner screen preparation, more consistent image development, and safer reclaiming operations. Its automated process helps protect screen patterns from damage while keeping washing quality stable across repeated jobs.

Specifications
Model GCF1200
Max. Washing Size 1200*1200 mm
Power Supply 380V 6kW
Total Power 5kW
Machine Dimensions 2000*1500*2200mm
Weight 900kg
Features
  • Thickened 304 Stainless Steel Body: The machine body is made from thickened 304 stainless steel, offering strong corrosion resistance and durability for long-term washing and developing operations.
  • Adjustable Washing Parameters with Memory Function: Operators can set washing stroke, pressure, washing cycles, moving speed, and other parameters. The memory function simplifies repeated operation and improves process consistency.
  • Fully Enclosed Structure: The enclosed design prevents spray splashing during washing, keeping the screen making workshop cleaner and more organized.
