After screen washing or emulsion coating, fast and even drying is important to keep screen preparation stable before exposure and printing. The GHB series vertical screen frame drying cabinet supports this process by drying screen frames efficiently while maintaining controlled temperature conditions inside the cabinet.
The cabinet uses a composite sandwich shell with high-density glass wool insulation, which reduces heat loss and limits heat radiation into the workshop environment. Its internal temperature can be adjusted steplessly according to process needs and kept constant, giving operators a reliable drying environment for daily screen preparation.
With capacity for up to 10 screen frames at one time and a maximum temperature of 60°C, this screen frame drying cabinet improves prepress efficiency while keeping drying results consistent. Four universal wheels make the cabinet easy to move, and the optional connection to an outdoor exhaust system gives workshops more flexibility in layout and ventilation.
| Model | ||
| Max. Frame Size (mm) | 1000 × 1000 | 1200 × 1300 |
| Heating Elements(kW×pcs) | 0.5 × 6 | 0.5× 6 |
| Total Power (kW) | 3 | 3 |
| Max. Temperature (°C) | 60 | 60 |
| Weight (kg) | 500 | 600 |
| Exterior Dimensions L×W×H (mm) | 1200 × 800 × 1700 | 1550 × 800 × 1950 |

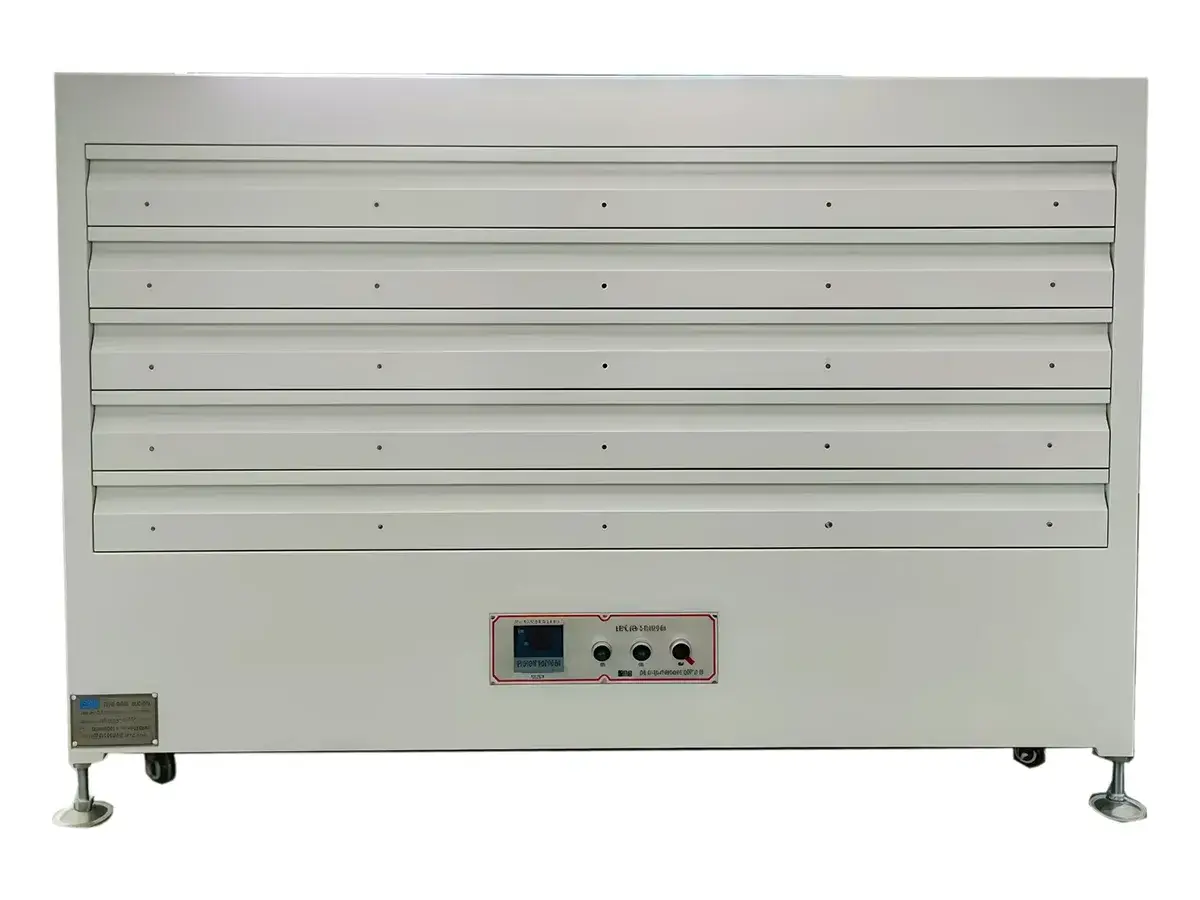

When freshly coated screens need to dry evenly without emulsion flow marks, the GHB-FT series screen frame drying cabinets provide a horizontal drying solution that keeps each screen frame flat throughout the process. This structure reduces the risk of wet emulsion running or accumulating unevenly, helping maintain a more consistent stencil thickness before exposure and printing.
The horizontal layout is especially useful for screen printing workshops that require stable emulsion quality and repeatable screen preparation. By keeping coated screen plates in a level position, these screen frame drying cabinets support cleaner image reproduction and more reliable printing results.
With a multi-layer drawer structure, several screen frames can be dried at the same time, improving prepress efficiency while keeping the drying process organized and controlled.
| Model | |
| Max. Frame Size | 1300×1300 mm |
| Number of Layers | 5 Layers |
| Operating Temperature | (Ambient + 10°C) – 50°C |
| Heating Elements | I-type heating tubes |
| Circulation Method | Hot air circulation |
| Opening Mechanism | Single-layer drawer type |
| Temperature Control | Intelligent controller, Auto-constant |
| Control Accuracy | ±1°C |
| Temperature Uniformity | ±3°C |
| Temperature Sensor | Thermocouple |
| Power Supply | 220V / 1-Phase / 3 kW |
| Machine Dimensions | 1650×1390 ×1050 mm |
| Weight | Approx. 400 kg |
| Note: Specifications can be changed according to customer requirements when ordering; customization is available. | |
