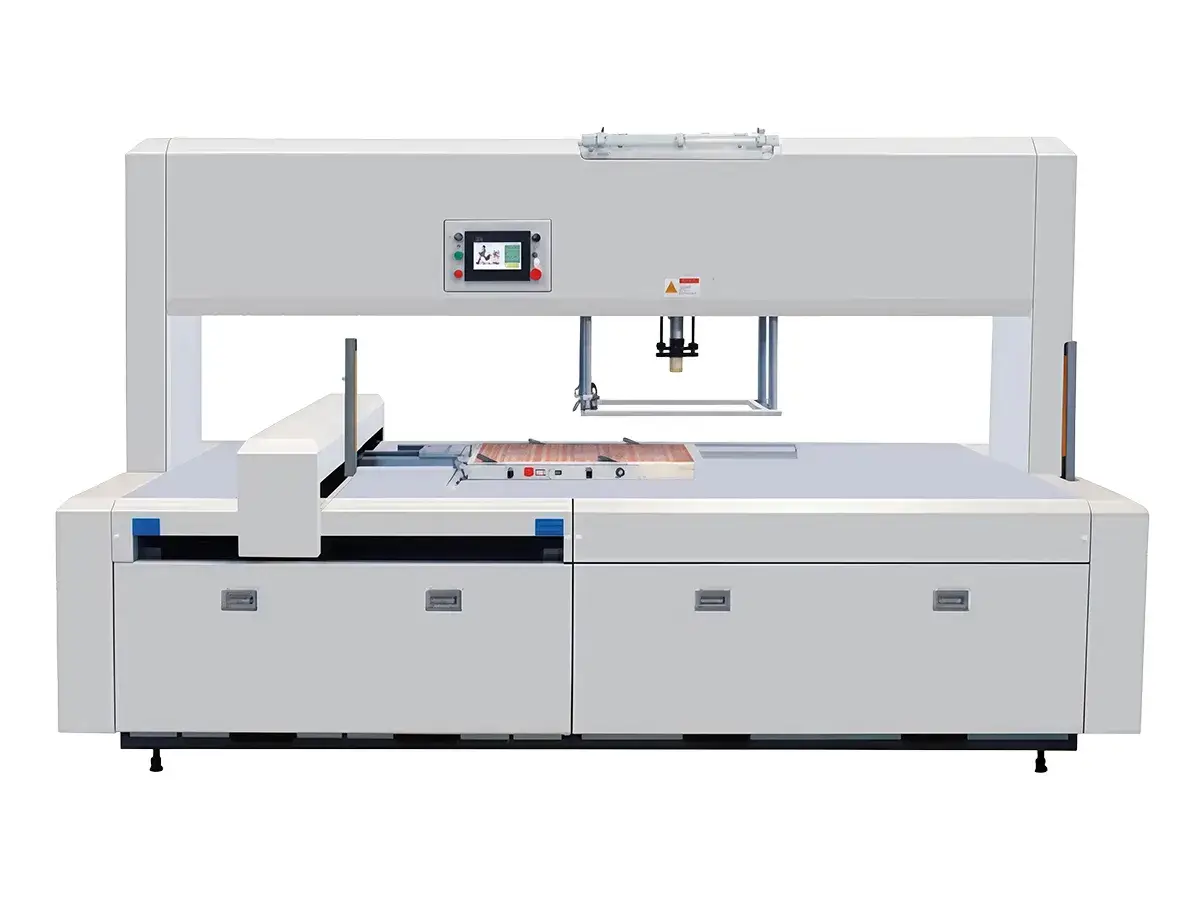

Automatic Stripping Machine

The automatic stripping machine speeds up waste removal after die-cutting, giving packaging producers a faster and cleaner way to process paper and PP packaging products. It is especially suitable for removing waste edges from die-cut boxes, hang tags, cigarette packs, and similar printed packaging materials.

Using a servo control system, this stripping machine performs high-speed cyclic stripping and greatly improves efficiency compared with manual waste removal. It can complete die-cutting waste stripping in one operation, reducing labor demand, improving output consistency, and keeping post-press production more efficient.

Specifications
Model QF-1080B
Max. Pressure 7 MPa
Stripping Speed 500–1500 times/h
Robot Picking Size 50 × 50 – 310 × 350 mm
Robot Picking Thickness (Pile) 60–120 mm
Delivery Speed 0–20 piles/min
Max. Stripping Size 520 × 380 mm
Min. Stripping Size 30 × 30 mm
Working Thickness (Sheet Count) 50–85 mm (50–200 sheets)
Operating System PLC Control
Max. Sheet Format 1080 × 780 mm
Min. Sheet Format 540 × 410 mm
Total Power 5 kW
Total Weight 2000 kg
Machine Dimensions (L×W×H) 3350 × 1750 × 1950 mm
Features
  • Hidden Servo Motor and Ball Screw Positioning: The hidden servo motor and ball screw structure ensures precise positioning of the stripping pile, improving waste removal accuracy during operation.
  • Adjustable Hydraulic System: The adjustable hydraulic system provides flexible pressure control for materials of different sizes and weights, making the machine more adaptable to varied packaging production needs.
  • Automatic Lubrication System: The automatic lubrication system performs regular lubrication for key moving parts, reducing wear and extending machine service life.
  • Visual Button Control Panel: The visual button control panel reduces the risk of misoperation and makes daily operation more intuitive.
  • Safety Guard on the Operating Side: The operating side is equipped with a safety guard to protect operators while the automatic stripping machine is running.
Main Components
    1. Centralized Lubrication System
      Centralized Lubrication System
    1. Paper Gauge with Hidden Motor and Ball Screw
      Paper Gauge with Hidden Motor and Ball Screw
    1. Adjustable Hydraulic System
      Adjustable Hydraulic System
    1. Safety Fence
      Safety Fence
